SI Editor View Menu - Tailoring Options

In this Topic HideIn this Topic Show
  1. Standard Windows Commands
  2. About Tailoring
    1. Editing Tailoring With Revisions
    1. Editing Tailoring Without Revisions
  3. Additional Learning Tools
  4. Technical Support Information

This command allows you to display and manage the existing TailoringTagged elements <TAI> </TAI> inserted by the Master Specification writer to indicate specific elements within a specification. These tags allow them to include or exclude requirements based on factors like agency or product. This pre-editing removes irrelevant requirements, simplifying customization for each project Options throughout the SectionA set of files within the Division of a Master or Job that covers specific aspects of construction.  From the list, you can choose to display (by selecting) or hide (by deselecting) single or multiple Tailoring Options. This list allows you to activate (select) or deactivate (deselect) individual or multiple Tailoring Options to customize your preferences.

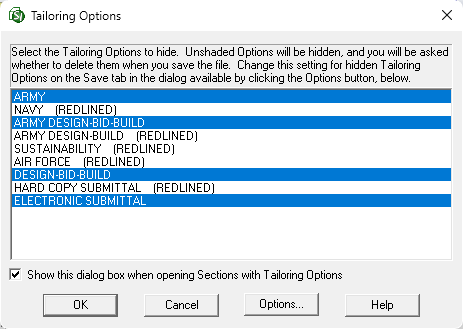

Illustration SI Editor's View Menu Tailoring Options

Illustration SI Editor's View Menu - Tailoring Options Show This Dialog Box When Opening Sections With Tailoring Options

When selected, opens the SI Editor's Tailoring Options window automatically when Tailoring Options are present. The window will not open if Tailoring does not exist in the Section.

Standard Windows Commands

Illustration SI Explorer's Dialog Box OK buttonThe OK button will execute and save selections made and make them partAll sections are divided into three parts: General, Products, and Execution of your Job's properties.

Illustration SI Explorer's Dialog Box Cancel buttonThe Cancel button will close the window without recording any selections or changes entered.

The Options button Opens the SI Editor's Tools > Options window.

Add Hyperlink

Illustration SI Explorer's Dialog Box Help buttonThe Help button will open the Help Topic for this window.

Illustration Icon Indicating Helpful HintWhen using RevisionsThe Revisions command reveals or conceals Revisions that are tagged in the text. Text to be added is identified with underscoring and the addition tags, <ADD> and </ADD>. Whereas text to be deleted, or Redlined, is identified with overstriking and the delete tags, <DEL> and </DEL>, hidden Tailoring Options will now display '(Redlined)' next to the Tailoring Option.

About Tailoring

When you open a Section with Tailoring Options, the Tailoring Tag will surround them. Tailoring Options are designed to make specification editing easier by providing a method for pre-editing information that has been marked with Tailoring TagsSpecsIntact relies on tags to control content, and formatting, automate processes, and generate reports. These special markers, like <SEC> and </SEC>, define elements and attributes within the specifications. Some tags, like <Page />, function independently. In essence, tags are the building blocks of SpecsIntact documents (TAI) by the Master specification writer (Technical Representative). This provides the specification editor with the ability to include or exclude Tailored text in its entirety, thereby eliminating requirements that do not pertain to the Job without manually editing each occurrence.

Illustration Icon Indicating StopThe disposition of any hidden Tailoring Options, when a Section is closed, is controlled by the related selections made on the Tools > Options > Save Tabs drop-down box under Save. You should review these options before using this function to avoid permanently removing options you may want to retain.

Add Hyperlink

Illustration Icon Indicating Helpful HintManaging Tailoring Options within a Master by adding or removing individual instances within a Section should be done through the Insert > Tailoring command. You can also manage Tailoring Options for all Sections within a Job through the SI Explorer's File > Tailor, or individual Sections through Sections > Tailor.

Illustration Icon Indicating CautionGrammatical problems may occur when a user Tailors the Job or Section. There is no way to prevent this situation when one or more Tailoring Option is removed. The specification writer or editor needs to be aware of and make the necessary corrections while editing the specification.

Editing Tailoring With Revisions

When using Revisions, the deselected (unshaded) Tailoring Options will be redlined. If the Tailoring Option contains more than one attribute such as <TAI OPT=Army, Navy, Air Force</TAI>, the deselected (unshaded) attribute will be removed, but not redlined. After saving a Section with hidden Tailoring Options, but before you have closed the Section or exited the SI Editor, you can still restore the hidden Tailoring Options.

Illustration Icon Indicating Helpful HintTo restore the hidden Tailoring Options before saving and closing the Section, return to the Tailoring Options window, select the Tailoring Option you want to restore click OK.

Illustration Icon Indicating Important Information To NoteRedlines will be applied once the Section is saved and closed.  Redlined Tailoring Options cannot be globally restored. however, Tailoring Options can be restored by using the Editor's Edit > Undelete Redlined Revisions.

Editing Tailoring Without Revisions

When tailoring without Revisions, the deselected (unshaded) Tailoring Options will be hidden. If the Tailoring Options contains more than one attribute such as <TAI OPT=Army, Navy</TAI>, the deselected (unshaded) attribute will be removed.  After you have saved a Section with hidden Tailoring Options, but BEFORE you have closed the Section or exited the Editor, you can still restore the hidden Tailoring Options by using this command. Select the Options you want to restore and click OK.

Illustration Icon Indicating CautionOnce you have saved and closed the Section, all hidden Tailoring Options will be deleted and cannot be restored.

Additional Learning Tools

Illustration Icon Indicating eLearning ModulesWatch the Tailoring a New Job eLearning module within Chapter 2 - Creating a Job and Adding Sections.

Users are encouraged to visit the SpecsIntact Website's Support & Help Center for access to all of our User Tools, including eLearning (video tutorials), printable Guides, a Knowledge Base containing Frequently Asked Questions (FAQs), Technical Notes and Release Notes, and Web-Based Help.
