AST Tag

In this Topic HideIn this Topic Show
  1. Examples
  2. Technical Support Information

Tags:

<AST/>

Description:

This tag is used to identify the asterisk bar used with Notes.  This EntityA single tag that SpecsIntact translates into commonly used text when tags are hidden or the Section is processed. tag is used to depict the beginning and ending of a Note or Header.

Source:

Menu Insert > Tags or F4

Rules:

None (entity tags -- are empty and contain no data; one of the few tags that does not have an end tag)



The asterisk bars tag looks as follows when both tags Illustration SI Editor's Tagsbar Show Tags buttonand Notes Illustration SI Editor's Tagsbar Show Notes buttonare visible:

Illustration Icon Indicating Examples ProvidedExamples

Illustrated below is an example of the Specifier Note with tags visible and hidden.



When Tags and Notes are visible, the <AST/> tag looks as follows:

Illustration of Asterisks Used With Notes



When Tags are hidden and Notes are visible, the <AST/> tag looks as follows:



Illustration of Note With Tags Hidden

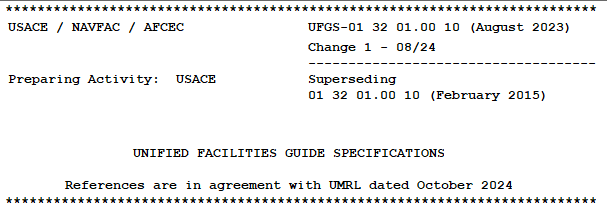

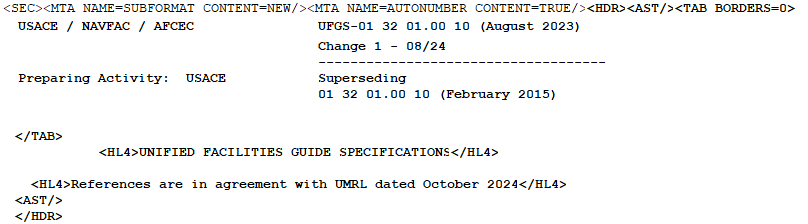

When used in the Header of the SectionA set of files within the Division of a Master or Job that covers specific aspects of construction, the tag is used as follows when Tags are visible:

Illustration of Section Header
